Laravel has one of the most thoughtfully designed database abstraction layers in the PHP ecosystem. What looks simple on the surface—a single line like User::find(1)—actually triggers a beautifully orchestrated chain of operations across multiple architectural layers.

At Noble Stack, we build complex backend systems with Laravel daily. Understanding this architecture isn't just academic—it's essential for writing performant, secure, and maintainable code.

This article walks through Laravel's complete database communication architecture, layer by layer.

Before We Begin: Key Concepts

This article is written for developers who want to understand Laravel's internals and architects evaluating the framework.

If some of these terms are unfamiliar, here's a quick reference:

ORM (Object-Relational Mapping): A technique that converts data between incompatible type systems—in this case, between database tables and PHP objects.
PDO (PHP Data Objects): PHP's database abstraction layer that provides a consistent interface for accessing different databases.
Eloquent: Laravel's ORM implementation that makes working with databases feel like working with PHP objects.
Query Builder: A fluent interface for constructing SQL queries programmatically without writing raw SQL.
Migrations: Version control for your database schema. Think Git, but for tables and columns.
Prepared Statements: Pre-compiled SQL statements that prevent SQL injection attacks.

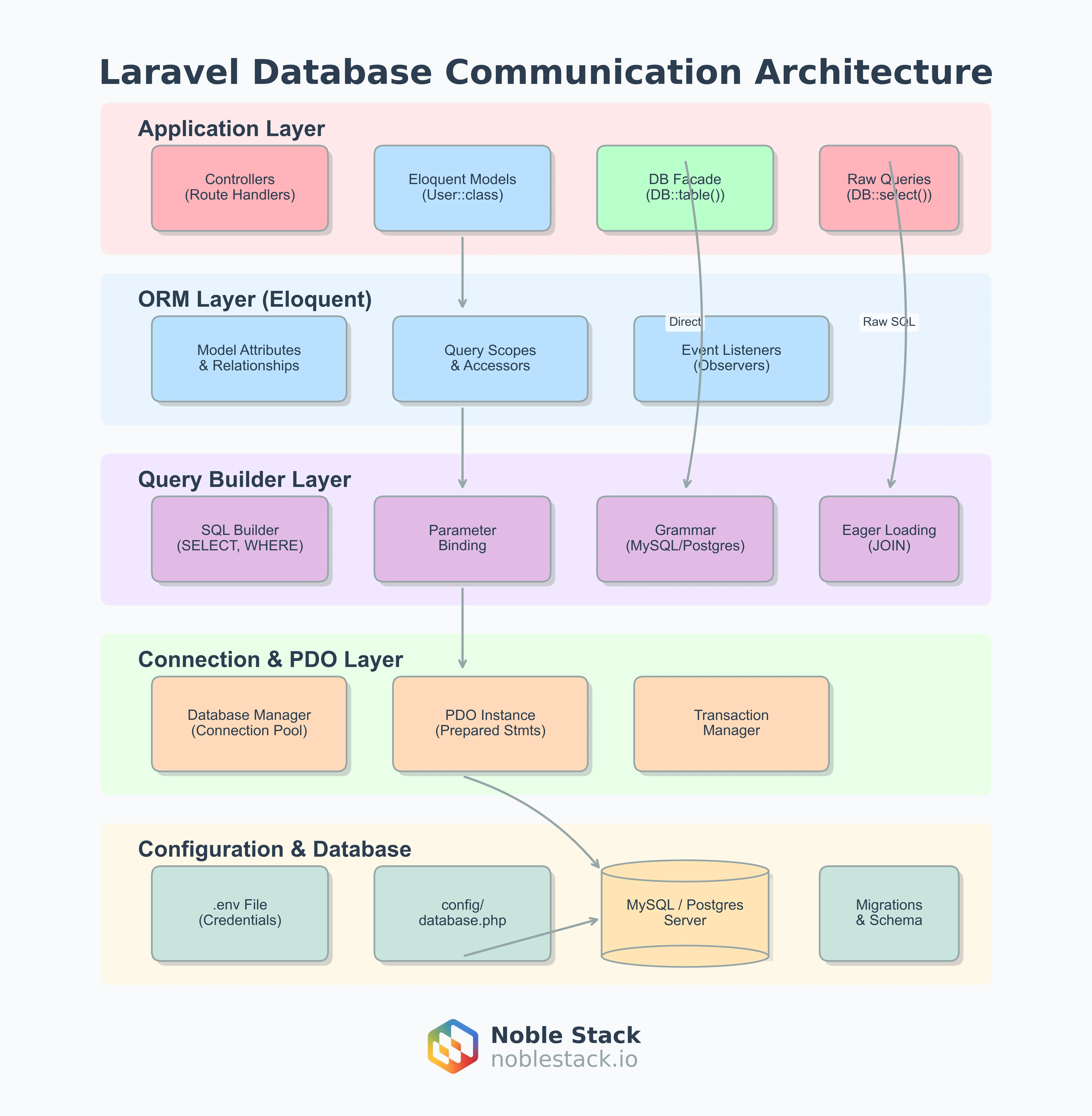

The Five-Layer Architecture

Laravel's database system is organized into five distinct layers, each with its own responsibilities. Understanding this separation is key to mastering the framework.

┌─────────────────────────────────────────────────────────────┐
│                    Application Layer                        │
│   Controllers, Eloquent Models, DB Façade, Raw Queries     │
├─────────────────────────────────────────────────────────────┤
│                    ORM Layer (Eloquent)                     │
│   Model Attributes, Relationships, Scopes, Observers       │
├─────────────────────────────────────────────────────────────┤
│                    Query Builder Layer                      │
│   SQL Builder, Parameter Binding, Grammar, Eager Loading   │
├─────────────────────────────────────────────────────────────┤
│                  Connection & PDO Layer                     │
│   Database Manager, PDO Instance, Transaction Manager      │
├─────────────────────────────────────────────────────────────┤
│               Configuration & Database                      │
│   .env, config/database.php, MySQL/Postgres, Migrations   │
└─────────────────────────────────────────────────────────────┘

Let's explore each layer in detail.

Layer 1: Application Layer

This is where you, the developer, interact with Laravel's database system. It's the highest abstraction level, offering multiple entry points depending on your needs.

Controllers (Route Handlers)

Controllers are the entry point for most database operations. They receive HTTP requests and coordinate data retrieval or manipulation.

1class UserController extends Controller
2{
3    public function show(int $id)
4    {
5        // This single line triggers the entire architecture
6        $user = User::find($id);
7
8        return view('users.show', compact('user'));
9    }
10}

When you call User::find($id), you're actually invoking a static method on an Eloquent model. Behind the scenes, Laravel creates a new Query Builder instance, constructs the SQL, executes it through PDO, and hydrates a User object with the result.

Eloquent Models (User::class)

Eloquent models are the primary way to interact with your database. Each model represents a table, and each instance represents a row.

1// Creating - INSERT
2$user = User::create(['name' => 'John', 'email' => 'john@example.com']);
3
4// Reading - SELECT
5$user = User::where('active', true)->first();
6
7// Updating - UPDATE
8$user->update(['name' => 'Jane']);
9
10// Deleting - DELETE
11$user->delete();

The elegance here is that you never think about SQL. You think about objects and their properties.

DB Façade (DB::table())

When you need more control than Eloquent provides—or when you're not working with models—the DB façade gives you direct access to the Query Builder.

1// Direct Query Builder access
2$users = DB::table('users')
3    ->where('votes', '>', 100)
4    ->get();
5
6// Joins become straightforward
7$results = DB::table('users')
8    ->join('orders', 'users.id', '=', 'orders.user_id')
9    ->select('users.name', 'orders.price')
10    ->get();

This is particularly useful for complex reporting queries or when working with legacy tables that don't map cleanly to Eloquent models.

Raw Queries (DB::select())

Sometimes, you need the full power of raw SQL. Laravel supports this while still protecting you from SQL injection through parameter binding.

1// Raw SELECT with bindings
2$users = DB::select('SELECT * FROM users WHERE id = ?', [1]);
3
4// Raw statement for complex operations
5DB::statement('ALTER TABLE users ADD INDEX idx_email (email)');

Important: Even with raw queries, always use parameter binding (? placeholders) rather than string concatenation to prevent SQL injection.

Layer 2: ORM Layer (Eloquent)

Eloquent is where the magic happens. This layer transforms database rows into rich PHP objects with behaviors, relationships, and lifecycle hooks.

Model Attributes & Relationships

Every column in your database table becomes an attribute on your model. But Eloquent goes further—it allows you to define relationships between models declaratively.

1class User extends Model
2{
3    // This user has many posts
4    public function posts()
5    {
6        return $this->hasMany(Post::class);
7    }
8
9    // This user belongs to a company
10    public function company()
11    {
12        return $this->belongsTo(Company::class);
13    }
14
15    // Many-to-many with pivot data
16    public function roles()
17    {
18        return $this->belongsToMany(Role::class)->withTimestamps();
19    }
20}

When you access $user->posts, Eloquent automatically constructs and executes the appropriate SQL query. This is called lazy loading.

Query Scopes & Accessors

Scopes let you encapsulate common query constraints, keeping your controllers clean.

1class User extends Model
2{
3    // Global scope - automatically applied to all queries
4    protected static function booted()
5    {
6        static::addGlobalScope('active', function ($query) {
7            $query->where('active', true);
8        });
9    }
10
11    // Local scope - applied explicitly
12    public function scopePopular($query)
13    {
14        return $query->where('votes', '>', 100);
15    }
16
17    // Accessor - transform data when reading
18    public function getFullNameAttribute()
19    {
20        return "{$this->first_name} {$this->last_name}";
21    }
22
23    // Mutator - transform data when writing
24    public function setPasswordAttribute($value)
25    {
26        $this->attributes['password'] = bcrypt($value);
27    }
28}
29
30// Usage
31$popularUsers = User::popular()->get(); // Uses the scope
32echo $user->full_name; // Uses the accessor

Scopes promote the DRY principle (Don't Repeat Yourself) and make your codebase more maintainable.

Event Listeners (Observers)

Eloquent fires events at various points in a model's lifecycle. Observers let you hook into these events cleanly.

1class UserObserver
2{
3    public function creating(User $user)
4    {
5        // Runs before a new user is saved
6        $user->uuid = Str::uuid();
7    }
8
9    public function created(User $user)
10    {
11        // Runs after a new user is saved
12        Mail::to($user)->send(new WelcomeEmail());
13    }
14
15    public function deleting(User $user)
16    {
17        // Runs before deletion - great for cleanup
18        $user->posts()->delete();
19    }
20}

This pattern keeps your models slim and moves business logic to dedicated observer classes.

Layer 3: Query Builder Layer

Below Eloquent sits the Query Builder—a powerful fluent interface for constructing SQL queries programmatically.

SQL Builder (SELECT, WHERE, etc.)

The Query Builder provides methods that mirror SQL clauses:

1$results = DB::table('orders')
2    ->select('customer_id', DB::raw('SUM(total) as revenue'))
3    ->where('status', 'completed')
4    ->whereBetween('created_at', [$start, $end])
5    ->groupBy('customer_id')
6    ->having('revenue', '>', 1000)
7    ->orderByDesc('revenue')
8    ->limit(10)
9    ->get();

Each method returns the builder instance, enabling the fluent (chainable) API that Laravel is known for.

Parameter Binding

This is one of the most critical features for security. Every value you pass to the Query Builder is automatically bound as a parameter, not concatenated into the SQL string.

1// Under the hood, this becomes:
2// SELECT * FROM users WHERE email = ?
3// With bindings: ['john@example.com']
4DB::table('users')->where('email', 'john@example.com')->get();

Parameter binding makes SQL injection attacks virtually impossible when using the Query Builder correctly.

Grammar (MySQL/Postgres)

Different databases have different SQL dialects. The Grammar component translates your Query Builder calls into database-specific SQL.

1// The same Query Builder code...
2DB::table('users')->whereJsonContains('options->languages', 'en')->get();
3
4// ...generates different SQL for each database:
5// MySQL: JSON_CONTAINS(`options`, 'en', '$.languages')
6// PostgreSQL: "options"->'languages' @> 'en'

This abstraction means you can often switch databases without changing application code.

Eager Loading (JOIN)

One of Eloquent's most important performance features. Without eager loading, accessing relationships in a loop causes the dreaded N+1 query problem.

1// BAD: N+1 problem (1 query for users + N queries for posts)
2$users = User::all();
3foreach ($users as $user) {
4    echo $user->posts->count(); // Triggers a query each iteration!
5}
6
7// GOOD: Eager loading (just 2 queries total)
8$users = User::with('posts')->get();
9foreach ($users as $user) {
10    echo $user->posts->count(); // Already loaded, no query
11}

Eager loading uses JOIN or separate IN queries to load relationships efficiently.

Layer 4: Connection & PDO Layer

This layer manages the actual connections to your database and handles low-level operations.

Database Manager (Connection Pool)

The Database Manager is Laravel's central hub for database connections. It handles:

Connection resolution: Determining which connection to use
Connection pooling: Reusing connections for efficiency
Read/Write splitting: Routing reads to replicas and writes to the primary

1// config/database.php
2'mysql' => [
3    'read' => [
4        'host' => ['192.168.1.1', '192.168.1.2'], // Read replicas
5    ],
6    'write' => [
7        'host' => '196.168.1.3', // Primary
8    ],
9    'sticky' => true, // Use write connection for subsequent reads in the same request
10],

This configuration automatically routes SELECT queries to read replicas while sending INSERT, UPDATE, and DELETE to the primary server.

PDO Instance (Prepared Statements)

At its core, Laravel uses PHP's PDO for actual database communication. PDO provides:

Database abstraction: The same API works with MySQL, PostgreSQL, SQLite, and SQL Server
Prepared statements: Pre-compiled queries that prevent SQL injection
Error handling: Consistent exception-based error reporting

1// Laravel abstracts this, but under the hood:
2$pdo = new PDO($dsn, $username, $password);
3$stmt = $pdo->prepare('SELECT * FROM users WHERE id = ?');
4$stmt->execute([1]);
5$user = $stmt->fetch(PDO::FETCH_ASSOC);

You rarely interact with PDO directly, but understanding it exists helps when debugging.

Transaction Manager

Database transactions ensure that multiple operations succeed or fail together—crucial for data integrity.

1use Illuminate\Support\Facades\DB;
2
3DB::transaction(function () {
4    $user = User::create(['name' => 'John']);
5    $user->account()->create(['balance' => 100]);
6    $user->profile()->create(['bio' => 'Hello!']);
7
8    // If any of these fail, all changes are rolled back
9});
10
11// Or with manual control:
12DB::beginTransaction();
13try {
14    // Operations...
15    DB::commit();
16} catch (\Exception $e) {
17    DB::rollBack();
18    throw $e;
19}

The Transaction Manager also handles savepoints for nested transactions, a crucial feature for complex operations.

Layer 5: Configuration & Database

The foundation layer handles how Laravel connects to your database and manages schema changes.

.env File (Credentials)

Sensitive configuration like database credentials live in your .env file, which should never be committed to version control.

1DB_CONNECTION=mysql
2DB_HOST=127.0.0.1
3DB_PORT=3306
4DB_DATABASE=noble_stack
5DB_USERNAME=root
6DB_PASSWORD=secret

Laravel's configuration system reads these values and makes them available throughout the application.

config/database.php

This file defines all your database connections and their settings:

1return [
2    'default' => env('DB_CONNECTION', 'mysql'),
3
4    'connections' => [
5        'mysql' => [
6            'driver' => 'mysql',
7            'host' => env('DB_HOST', '127.0.0.1'),
8            'port' => env('DB_PORT', '3306'),
9            'database' => env('DB_DATABASE', 'forge'),
10            'username' => env('DB_USERNAME', 'forge'),
11            'password' => env('DB_PASSWORD', ''),
12            'charset' => 'utf8mb4',
13            'collation' => 'utf8mb4_unicode_ci',
14            'prefix' => '',
15            'strict' => true,
16            'engine' => null,
17        ],
18
19        'pgsql' => [
20            'driver' => 'pgsql',
21            // PostgreSQL configuration...
22        ],
23    ],
24];

You can define multiple connections and switch between them dynamically.

MySQL / PostgreSQL Server

The actual database server is external to Laravel. Laravel supports:

MySQL / MariaDB: The most popular choice for Laravel applications
PostgreSQL: Preferred for complex queries, JSON operations, and GIS data
SQLite: Perfect for testing and small applications
SQL Server: For enterprise environments

Migrations & Schema

Migrations are version control for your database schema. They allow you to evolve your database structure collaboratively.

1class CreateUsersTable extends Migration
2{
3    public function up()
4    {
5        Schema::create('users', function (Blueprint $table) {
6            $table->id();
7            $table->string('name');
8            $table->string('email')->unique();
9            $table->timestamp('email_verified_at')->nullable();
10            $table->string('password');
11            $table->rememberToken();
12            $table->timestamps();
13
14            // Indexes for performance
15            $table->index('created_at');
16        });
17    }
18
19    public function down()
20    {
21        Schema::dropIfExists('users');
22    }
23}

Run php artisan migrate to apply pending migrations, and php artisan migrate:rollback to reverse them.

The Complete Flow: What Happens When You Call User::find(1)

Let's trace a single query through all five layers:

Application Layer: User::find(1) is called in a controller
ORM Layer: Eloquent creates a new Query Builder instance for the users table
Query Builder Layer: The builder constructs SELECT * FROM users WHERE id = ? with binding [1]
Connection Layer: The Database Manager gets the MySQL connection, PDO prepares the statement
Database Layer: MySQL executes the query and returns the row
Return Path: PDO returns the result, Query Builder receives it, Eloquent hydrates a User model, controller gets the object

All of this happens in milliseconds. The abstraction layers add negligible overhead while providing immense developer productivity.

Performance Considerations

Understanding this architecture helps you write faster code:

1. Avoid N+1 Queries

Always eager load relationships when iterating:

1User::with(['posts', 'comments', 'profile'])->get();

2. Use Chunking for Large Datasets

Don't load millions of rows into memory:

1User::chunk(1000, function ($users) {
2    foreach ($users as $user) {
3        // Process in batches
4    }
5});

3. Select Only What You Need

Don't use SELECT * when you only need specific columns:

1User::select('id', 'name', 'email')->get();

4. Use Database Indexes

Migrations support index creation:

1$table->index(['user_id', 'created_at']); // Composite index

5. Cache Expensive Queries

Use Laravel's cache for queries that don't change often:

1$users = Cache::remember('active-users', 3600, function () {
2    return User::where('active', true)->get();
3});

Conclusion

Laravel's database architecture is a masterclass in software design. Each layer has clear responsibilities:

Application Layer: Developer-facing APIs
ORM Layer: Object-relational mapping and model behaviors
Query Builder Layer: SQL construction and database abstraction
Connection Layer: Connection management and transactions
Configuration Layer: Credentials, settings, and schema management

Understanding these layers transforms you from a Laravel user to a Laravel expert. You'll write more performant queries, debug issues faster, and architect better solutions.

At Noble Stack, this deep understanding of Laravel's internals is how we build robust, scalable backend systems for our clients.

The next time you write User::find(1), you'll know exactly what's happening under the hood.

Have questions about Laravel architecture or need help with your backend system? Get in touch with us.
